High lift pallet truck EXV 10C-16C

Elevate stacking with ease

  • Nosnosť 1600 kg
  • Menovitý zdvih 5466 mm
  • Rýchlosť 6 km/h

The EXV high lift pallet truck with the unique OptiSpeed tiller is quite something. The speed of this manually guided warehouse assistant is automatically adapted to the distance between the operator and the truck. Note the unique tiller ergonomics: a lot of thought has gone into the positioning of the controls. They allow intuitive one-handed operation for all operators, regardless of hand size and whether left or right. And the LED display on the tiller head allows the operator to keep an eye on all relevant truck information. As if that weren't enough, the truck's stability on slopes and its ability to stop automatically when the tiller arm is released are particularly impressive. Sophisticated lowering damping, which gently slows the lowering speed just before ground contact, protects goods during storage. With the EXV, goods can be stored more tightly than ever before and retrieved more easily. With its high residual load capacity and exceptional manoeuvrability, this compact truck is unbeatable when it comes to moving large quantities of goods quickly and safely in confined spaces with a manual truck, whether in the pre-storage area or on shelving.

Nezáväzná ponuka
Nezáväzná ponuka na prenájom
Naša ponuka použitých vozíkov

Záujem o: EXV 10C-16C

Vyplňte nasledujúci formulár. Čo najskôr Vás oslovíme.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

High. Hub. Hooray. That's how uncomplicated efficiency can be.

May we introduce: Your new best friend in the camp. Smart and adaptable, compact and powerful, safe and efficient. The new EXV 10C-16C will immediately captivate you - and its extremely small turning circle. No wonder. After all, it has a lot to offer with its flexible application options, intuitive handling with the innovative drawbar and its smart safety features. It lifts up to 1.6 tonnes effortlessly and, with the optional wheel arm extension, is happy to transport two pallets at once.

As changeable as a chameleon →
One blink of an eye is enough... →
No risk, more fun →

As changeable as a chameleon

Configure your EXV 10C-16C exactly how you need it. Uneven floors? The optional initial stroke compensates for this wonderfully. Little space and narrow driveways? With a lithium-ion battery, your EXV is so compact and manoeuvrable that no space is too tight for it. Its rounded forks also make threading into the pallets a breeze, and with the optional wheel arm extension, you can transport two pallets at once. Only chameleon-like changing the color, he can't (yet) do that...

One blink of an eye is enough...

... to record all relevant vehicle information on the large LED display in the tiller head. It is not for nothing that the innovative tiller head concept was awarded the coveted IFOY Award.

No risk, more fun

Do you need any more proof that safety and efficiency go together beautifully? Here it is: Thanks to smart safety features such as Dynamic Load Control, you can always lift exactly as heavy and high as your EXV 10C-16C can handle, it will go anywhere but over your feet and with its stable 4-wheel chassis it will always have a safe and stable footing - even in the tightest of spaces and in the most curvy corners.


As easy as a dance - that's how working with the EXV 10C-16C can be described. Loose and intuitively managed, elegantly twisted and seemingly effortlessly lifted. Even in the smallest dance area. Its unique tiller ergonomics, compactness and flexible drive programs ensure easy one-handed operation, impressive manoeuvrability and maximum manoeuvrability. You like to take a spin right away...

Have your hands full? →
Drawbar is child's play →

Have your hands full?

Not with the EXV! After all, one hand is all it takes to operate it smoothly, precisely and ergonomically, even in the smallest of spaces. And by the way, this is completely independent of the size of your hand and whether you have your left or right hand free. Your smart warehouse assistant also takes care of the speed itself: Thanks to the OptiSpeed drawbar, it always adapts its travel speed to the distance to the operator.

Drawbar is child's play

Today like this, tomorrow like that. With its different drive modes, the EXV 10C-16C is ideally equipped for a wide range of applications - and with the creep mode and the OptiSpeed drawbar, it can be manoeuvred safely and precisely even in the tightest of spaces.

In no time, everything is ready!

This makes work a pleasure. Agile, efficient, energetic and highly available, the EXV 10C-16C ensures maximum storage compaction, thrilling pallet handling and effortless precision.

Turning a little into a lot →

Turning a little into a lot

This is perfect use of space: Thanks to its compact dimensions coupled with its high residual load capacity, the EXV 10C-16C can store and retrieve an unbeatable amount in the smallest of spaces. Not to mention the option of double-decker transport.

EXV 10C-16C detail

Faktor „Simply Efficient“: výkonnostné parametre ako merítko vysokej efektivity

Simply easy

Flexible, intuitive operation of all control elements on the tiller head
with one hand, without the need to change grip, naturally for both left- and right-handed operators

Reliable availability
thanks to large colour display with battery status display

Optimal ergonomics and reduced physical strain for the operator
thanks to electric driving, lifting and lowering functions

Clear view through the mast to the fork tips
facilitates hassle-free pallet handling

Unbeatable handling performance:
powerful motor, high residual load capacity and responsive control elements


Simply powerful

Power meets safety:
the four-wheel chassis ensures outstanding stability and effective performance

Reliable excellent performance
thanks to the powerful yet low- maintenance AC motor

New level of precision and safety for user and load
thanks to the responsive proportional valve control

Optimal availability, low-maintenance and high performance
thanks to the optional lithium-ion technology

Smooth and precise electrical steering

Simply safe

Maximum driver safety
thanks to the low-entry truck frame and load backrests

Initial lift ensures stable and low-vibration driving performance,
even if there are slight gradients or unevenness in the floor

Safety for man and machine:
OptiSpeed tiller and automatic stop mechanism when the tiller is released

Safe manoeuvring even in restricted space
thanks to creep speed mode

Information on the lift height at a glance
– on the coloured load capacity display

Estimate the load correctly:
Dynamic Load Control can be used to estimate the load and the corresponding maximum lift height

Simply flexible

Precision even in confined spaces
thanks to compact dimensions

Well-equipped for a wide range of applications
with different driving programmes

Ready for use at all times:
the battery can be charged and interim charged flexibly from any location without the need for a fixed charging station

Simply connected

Compact information:
all relevant truck information is available at a glance in the STILL neXXt fleet web application.

Innovative STILL FleetManager keeps driver and truck safe:
operator management and shock detection as well as damage and cost minimisation thanks to access protection

Optimisation of the goods flow
thanks to straightforward connection to existing material flow management systems via MMS provision

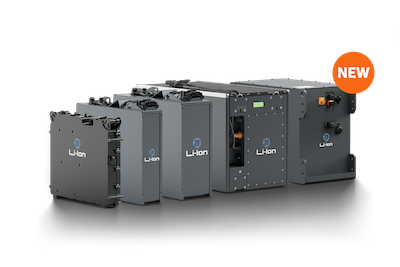

Zabudovaná Li-Ion technológia spoločnosti STILL

Dokonale zladený energetický systém znižuje prevádzkové náklady a zvyšuje dostupnosť vozíkov.

Viac o technológi STILL Li-Ion



A quick glance at the LED display is all it takes to have all the relevant vehicle information clearly at hand.


Everything in view, all the time: Optional touch display with a range of language-independent symbols shows you all of the important functions at a glance.

Ground clearance

Optional initial lift gives greater ground clearance on uneven floors.

Easy threading into the pallets

Fast and precise operation thanks to rounded forks.

Compact vehicle dimensions

Extremely compact and manoeuvrable thanks to optionally integrated lithium-ion battery.

Maximum safety

More safety even in confined environments thanks to active foot protection.

Maximum safety

More safety even in confined spaces thanks to passive foot protection.

Extension of the forks

Efficient transport of two pallets thanks to optional wheel arm extension.

Záujem o: EXV 10C-16C

Vyplňte nasledujúci formulár. Čo najskôr Vás oslovíme.

This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

Možnosti doplnkov

Zostrenie všetkých zmyslov: podporíme Vás vďaka širokej škále inteligentných asistenčných systémov a funkcií, ktoré Vám výrazne uľahčia každodennú prácu. Budete môcť jazdiť bezpečnejšie, pohodlnejšie, efektívnejšie a bez únavy - v každej jazdnej situácii.

Operadlo nákladu

Udrží tovar na mieste: operadlo nákladu stabilizuje prepravovaný tovar na nosiči vidlice dozadu, aby ho bolo možné bezpečne prepravovať z bodu A do bodu B.

Ďalšie informácie

Oje OptiSpeed

Funguje v akomkoľvek uhle

Bez ohľadu na uhol oja, riadenie s funkciou OptiSpeed automaticky zaisťuje, aby sa maximálna rýchlosť jazdy prispôsobila uhlu oja. Ak je uhol ostrejší, jednotka automaticky spomalí. Riadenie pomocou oja pomáha zaistiť bezpečný pohyb aj v stiesnených priestoroch. Obsluha tak môže ľahko riadiť a pracovať ergonomicky.

Ďalšie informácie

Curve Speed Control

Automatické nastavenie rýchlosti v zákrutách

Obmedzovač rýchlosti ovládaný v závislosti od natočenia riadenia znižuje pravdepodobnosť poškodenia tovaru vďaka primeranej rýchlosti v zákrutách. Táto asistenčná funkcia je k dispozícii pre rôzne vysokozdvižné vozíky a zariadenia skladovej techniky a automaticky reguluje rýchlosť jazdy podľa uhla natočenia riadenia. Inými slovami, vodič sa nemusí obávať rýchlosti v zákrutách. Vozík automaticky spomaľuje presne v takej potrebnej miere, ktorá umožní vodičovi jazdiť bezpečne, ale svižne.

Ďalšie informácie

Dynamická kontrola zaťaženia (DLC 3)

Bezpochyby oceníte optimálny výkon

Bezpečné a presné zaobchádzanie s bremenom podľa výšky zdvihu bremena

Systém Dynamic Load Control bol vyvinutý s cieľom uľahčiť prácu obsluhe vysokozdvižných paletových vozíkov STILL EXV a FXV. Inteligentný asistenčný systém dokáže s vysokou presnosťou odhadnúť nosnosť a hmotnosť nákladu. Je k dispozícii v rôznych úrovniach rozšírenia. Maximálna úroveň vysunutia DLC 3 zobrazuje na displeji ovládacej jednotky obsluhe aktuálnu hmotnosť nákladu, maximálnu možnú výšku zdvihu s touto hmotnosťou a aktuálnu výšku zdvihu. Posledná menovaná hodnota sa meria pomocou ultrazvukového snímača. Hneď ako sa užívateľ priblíži k maximálnej výške zdvihu, systém vydá varovný signál. Proces zdvíhania sa automaticky vypne pred prekročením maximálnej výšky zdvihu.

Ďalšie informácie

Jazdné programy

Ten správny jazdný program pre všetky požiadavky: operátor si môže zvoliť medzi tromi preddefinovanými a dvoma voľne konfigurovateľnými jazdnými programami v troch prevádzkových režimoch: Blue-Q, normálny a šprint. Jazdné programy je možné zvoliť podľa situácie, aby sa dosiahol maximálny výkon alebo energetická účinnosť.

Inteligentný autopilot: Blue-Q (modré tlačidlo) - úsporný režim vysokozdvižného vozíka sa aktivuje jedným stlačením tlačidla. Inteligentná optimalizačná charakteristika pohonu šetrí energiu presne tam, kde to nemá žiaden vplyv na pracovný proces.

Úspora energie až o 10% v závislosti od profilu použitia a typu vysokozdvižného vozíka.

Ďalšie informácie

Chránič nôh

Aby sa predišlo situáciám, pri ktorých uviazne noha chodca pod pneumatikami, je možné na vozíkoch upevniť gumenú manžetu. Ako doplnková výbava je k dispozícii chránič nôh s kontaktnou lištou, ktorý zaručuje, že sa vozidlo pri kontakte zastaví.

Ďalšie informácie

Displej so zobrazením nosnosti

Stabilita po celý čas: voliteľný displej nosnosti zobrazuje užívateľovi vždy aktuálnu výšku zdvihu a súvisiacu zvyškovú nosnosť.

Nosnosti a výšky zdvihu sú zobrazené na farebných značkách pripevnených priamo na stožiari.

Ďalšie informácie


{{ filteredVideos.length }} Videí

Prehľad modelov

Maximálna nosnosť (kg)
Maximálna výška zdvihu (mm)
Pojazdná rýchlosť (km/h)
Napätie batérie (V)
EXV 10(i)C / Li-Ion 1.000 1.912 6.0 24
EXV 12(i)C / Li-Ion 1.200 4.386 6.0 24
EXV 14(i)C / Li-Ion 1.400 5.466 6.0 24
EXV 16(i)C / Li-Ion 1.600 5.466 6.0 24
